Did you know that cannabis oil viscosity matters when choosing a vape cartridge? Using the wrong one based on the thickness or thinness of your oil can actually lead to clogs, leaks, burnt hits, and wasted products!
Many users focus on the oil itself, but matching the right cartridge to oil viscosity is just as important, especially for retailers stocking cartridges, brands filling their own carts, and consumers seeking consistent performance.
In this guide, we’ll discuss what viscosity means in cannabis oil, the range of thicknesses across different extracts, and how to match each oil to the right hardware.
What Is Viscosity in Cannabis Oil?
In simple terms, viscosity is the resistance of a liquid to flow, referring to its thickness or thinness.
High viscosity means that the liquid is thick and it moves slowly. Low viscosity is the opposite: it is a thin oil that flows easily.
In the context of cannabis oil, the viscosity of the liquid varies depending on the type of extract, whether it be distillate, live resin, live rosin, CBD oil, etc.
The extract’s viscosity determines how easily or slowly it can flow towards the heating element, or, in the cart’s case, the wick and coil.
This can make or break the user’s overall experience, as it affects vapor production, the flavor, and the coil performance.
Viscosity Levels of Different Cannabis Oil Types
The thickness or thinness of cannabis oil depends on many factors. The extraction method, cannabinoid concentration, terpene content, and even temperature can all contribute to an extract's viscosity.
Below is a list of the most common cannabis oil types from thickest to thinnest viscosity:
- Shatter - Extremely high viscosity. Solid, glass-like; breaks rather than flows until heated
- Live Rosin - High viscosity. Malleable and waxy; sap-like
- DIstillate - High viscosity. Thick, honey-like oil
- Live Resin - Medium to high viscosity. Sticky sap/butter
- Crude Oil - Medium to high viscosity. Typically thick and dark
- Sauce - Low to medium viscosity, with runny terpene liquid
- CBD Oil - Low to medium viscosity, depending on the formulation
- Liquidized or Cut Oil - Lowest viscosity due to added terpenes and thinning agents
How to Identify a Cartridge’s Aperture
The cartridge aperture is the small intake holes in the center post that allow oil to flow into the atomization chamber or the heating element.
Visual Inspection
Consumers can check out the holes in the central tube. There will either be 2 or 4 of those near the base of the tank.
The largest aperture some vape carts have is 2.0mm+. This is designed for high-viscosity, thick oils, like rosin and distillate.
Slightly smaller than that, at about 1.6mm to 1.8mm, can accommodate extracts with medium viscosity, such as live resin. The smallest aperture, about 1.2mm to 1.6mm, is designed for low-viscosity oils, such as sauces and thinner extracts.
Manufacturer Specifications
Reputable manufacturers, such as CCELL, iKrusher, and Greentank, will include a detailed spec sheet for their hardware, including the cart’s intake hole aperture.
Brands that refill their own cartridges can also do a sample “test fill,” where they fill a couple of cartridges of different apertures with different types of cannabis oil and test how each fares based on:
- Viscosity testing, to determine if the intake holes can keep up with the wicking speed
- Clogging or leakage check, which means the aperture is too large for the oil
- Dry hit or burn taste check, which means the aperture is too small for the oil
Measuring the holes manually is also possible by using a caliper.
Ask Your Supplier
Reliable wholesale suppliers of vape cartridges will provide you with information and guidance on the best and most compatible oil for each type of cart.
At Vape Pens Wholesale, all the details of our cartridges are available on the website, including the oil intake size and the number of holes. Our top-notch support team is also very knowledgeable about the industry and can answer all your questions!
Check out our high-quality vape cartridge collections here, and contact us here.
Why Matching Oil Viscosity to Cartridge Aperture Matters
Larger apertures allow thick oil to flow more easily, while smaller apertures are better for thin oil.
Choosing the wrong oil intake size based on your oil's viscosity can affect vape performance and the overall user experience.
Using small-aperture carts with thick oil can result in dry or burnt hits, as the oil can’t reach the heater fast enough. This clogging can result in hard pulls and little to no vapor production.
Using large-aperture carts with thin oil, on the other hand, can result in leaking problems, as the thin oil flows too quickly to the heating chamber before it can heat it. Because of this, the thin oil can escape through the airflow holes or the base, and the user may experience a spitback.
A mismatch in oil viscosity and cartridge aperture will result in inconsistent vape performance, with uneven vapor production and reduced flavor quality.
Choosing the Right Hardware for Thick vs. Thin Oils
Best Cartridges for Thick Oils (Distillate, Rosin)
Features to look for:
- Larger intake holes
- Ceramic coil technology
- Strong heating capability
- High-quality seals
Best Cartridges for Medium Oils (Live Resin)
Features to look for:
- Moderate aperture size
- Ceramic or quartz coils
- Balanced airflow design
Best Cartridges for Thin Oils
Features to look for:
- Smaller intake holes
- Leak-resistant design
- Controlled airflow systems
Browse our top-rated empty 510 cartridges and dab carts, designed for thick oils and distillates! These 510 thread cartridges use advanced quartz cell heating for consistent performance, pure flavor, and no burnt hits. Check them out here.

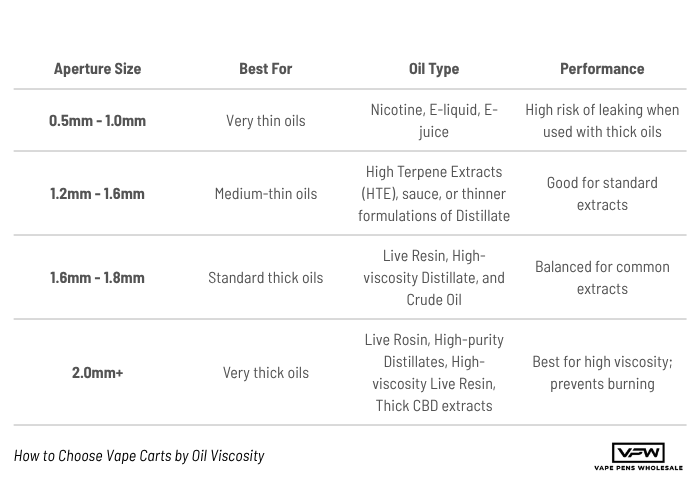

Quick Reference: Matching Oil Viscosity to Cartridge Type
Maintenance Tips for Consistent Vape Cart Performance
Keeping the oil intake holes clear is important for your vape’s optimal performance.
To do this, make sure to:
- Store the cartridges upright to prevent the oil from entering the airflow channels
- Use the right voltage setting for proper and even heating (thick oils = medium to high voltage; thin oils = lower voltage)
- Keep the cartridge at room temperature. Extreme heat will thin the oil (which may lead to leaks), and extreme cold will thicken the oil (which may lead to clogging).
- Clean the threads and circular airflow holes where the cartridge and battery are connected
- Clear the airway by continuing to draw air for 1 to 2 seconds after releasing the button. This will clear the vapor from the chamber before it condenses.
- Make sure the oil intake holes are covered with oil before using. If they are not saturated enough, set the cart upright on a flat surface until the oil settles.
- Use the preheat function of your battery, if available, to warm up the thick oil before drawing to ensure smooth flow
- Always use quality hardware by using products from trusted manufacturers and reliable suppliers
Explore our collection of 510 threaded batteries, perfect for THC vape cartridges! Our reliable and versatile batteries include a pre-heating function, great for thicker oils and ensuring a smooth vaping session. Check them out here.
Also, avoid:
- Leaving your cart lying on its side or upside down for long periods
- Overfilling the cart, which can cause oil leakage into the chimney or mouthpiece (spitback)
- Using water to clean the oil intake holes. Use isopropyl alcohol to break down the residue, and let it dry completely before refilling
- Over-tightening when re-attaching the cartridge to the battery, as it may block the airflow holes located at the thread
- Doing long, hard draws that can cause excessive condensation and pull oil into the air path
Frequently Asked Questions
Why does my vape cart clog even when full?
Clogging can happen when oil thickens, especially in cooler temperatures. Condensed vapor can also build up in the airway after repeated use.
Taking shorter puffs and storing the cart upright at room temperature can help reduce clogs.
Can I use the same cartridge for all cannabis oils?
Not always. Different oils (like distillate, live resin, or rosin) have different viscosities, and some cartridges are designed specifically for thicker or thinner extracts.
Using the wrong type can cause clogging, leaking, or poor vaporization.
Why is my vape cart leaking from the bottom?
Leaking can result from overheating, overfilling (in refillable carts), damaged seals, or thin oil. Heat can cause oil to expand and seep through the airflow holes.
Keeping the cart upright and avoiding high voltage settings can help prevent leaks.
How can I tell if my oil is too thick for my cart?
If you notice frequent clogs, dry hits, or weak vapor despite a charged battery, the oil may be too thick for the cartridge’s coil design.
Very slow-moving oil that doesn’t wick toward the coil easily is another sign.
Does temperature affect vape oil viscosity?
Yes. Cold temperatures make oil thicker and more prone to clogging, while high heat thins the oil and can increase the risk of leaks.
Storing cartridges at stable room temperature helps maintain proper viscosity.
Conclusion
Knowing how to choose vape carts based on your oil viscosity is not only nice-to-know for all cannabis vaping enthusiasts; it’s essential information that can help consumers get the most out of their experience.
It ensures better performance, longer cartridge lifespan, and improved customer satisfaction, which is especially important for retailers and manufacturers.
The key to consistent vape performance starts with the right hardware. Explore high-quality vape cartridges designed for every oil type at VapePen Wholesale — your trusted source for reliable, wholesale vape components that deliver performance and value.
